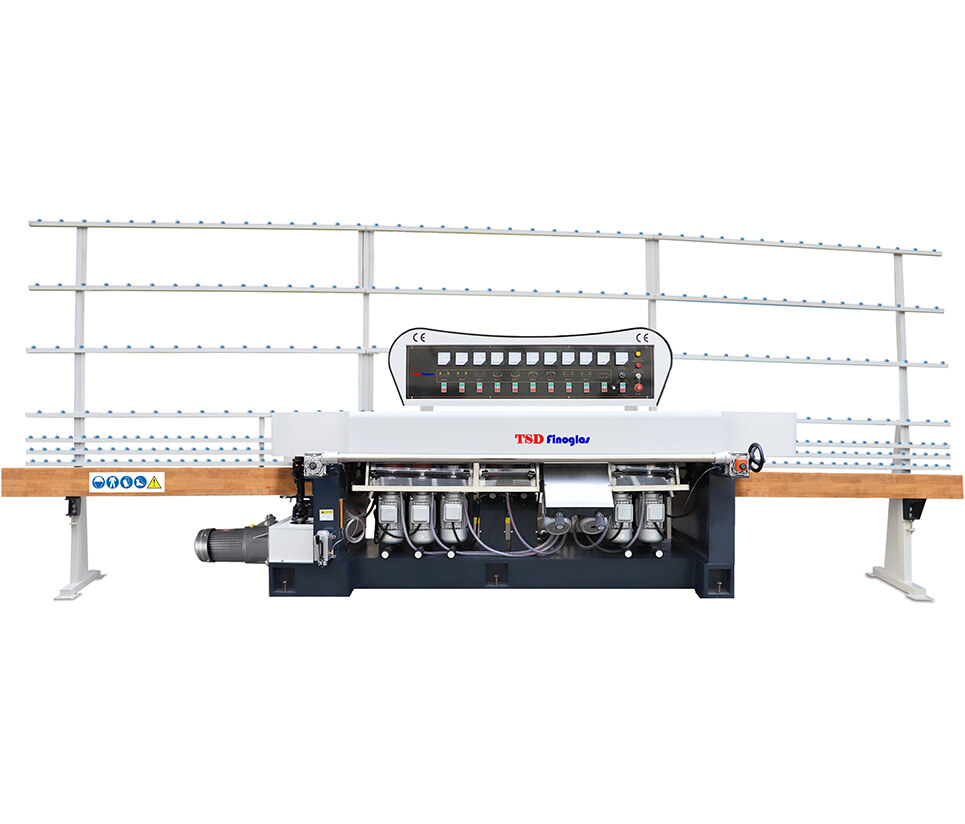

Vertical Straight Edger

Used for grinding glass straight edges. Rough grinding, fine grinding, bottom edge and chamfering can be completed by felt wheel polishing in one go.

Frequency control of motor speed and working load can be adjusted smoothly at will by continuously variable mechanism transmission.

The machine is equipped with automatic clamping system, which takes easy operation, high precision and efficiency.

＊ In order to process glass straight edges and 45 degree edges, 45° series glass edging machine also can be available.

＊ To meet different needs, bearing type and normal type vertical edgers are available.

＊ The clamps plates can be metal material for options.

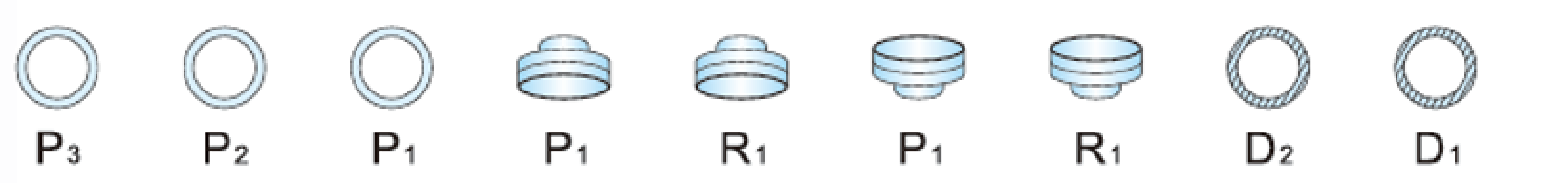

Wheels Placement (as reference example only)

This glass straight edging machine is for grinding /polishing glass edge grinding, suitable for grinding straight edge of different size and thickness flat glass.

The coarse grinding, fine grinding, edge bottom and chamfering polishing can be finished at one time.

1) Simple operation

2) High efficiency

3) Energy saving

4) Beam and base annealing treatment, not deformed

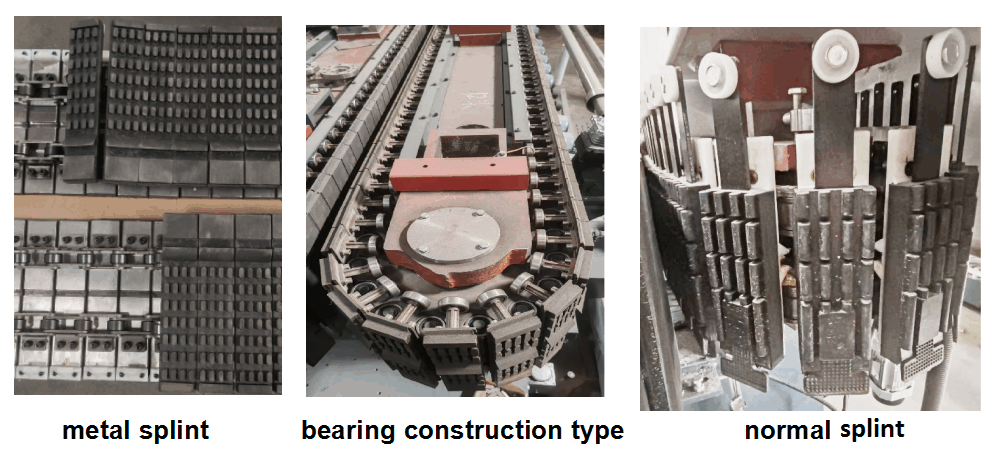

Machine construction display

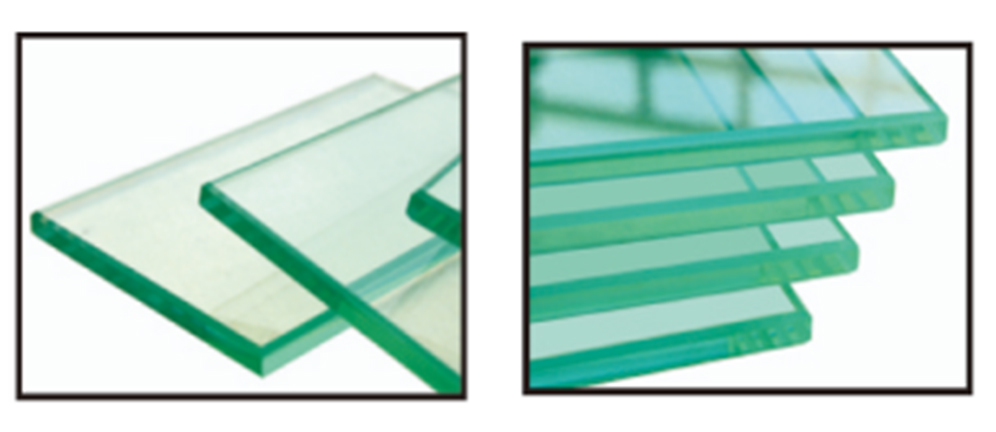

Glass edging result display
