Shaped Glass Grinding

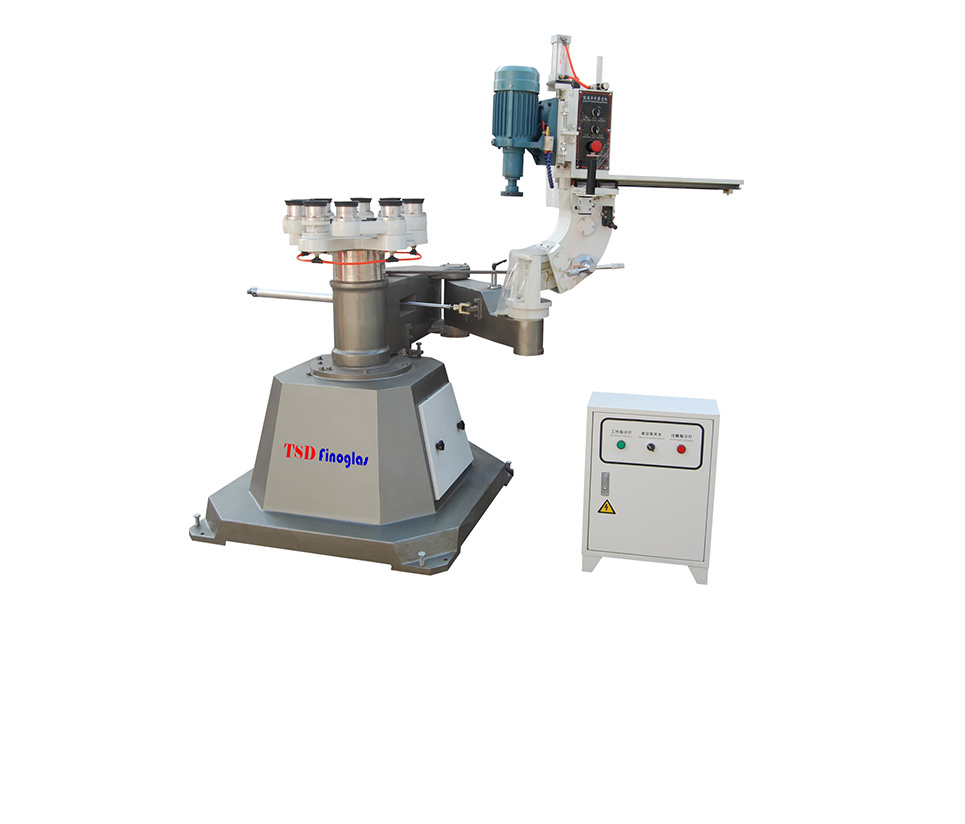

Shaped-glass grinding machine,suitable for grinding and polishing the outer edge with rounded or duckbilled shape for circle ,oval and irregular flat glass.

Glass is absorbed onto vacuum sucker, motor driven rotary plate or a separate disk drive is an independent five-star turntable rotation rotary speed can be adjusted as required.

Adopt air cylinder to grind simple shape glass semi-automatically, when grinding the pencil edging, install three grinders to process coarse grinding, fine grinding and polishing.

When grinding the beveling, adopt bowl-shaped grinding wheels, adjustment the bevel angle by tilt the grinders head back.

1. Precision grinding:

This Shaped-glass grinding machine adopts advanced grinding technology and can grind the glass edge with high precision. Its grinding accuracy can reach micron level, ensuring the flatness and smoothness of the glass edge. Whether it is a complex curved edge or a sharp corner, it can achieve uniform and consistent grinding effect, meeting the strict requirements of different customers for the quality of glass edges.

2. Flexible drive:

It is equipped with an independent five-star turntable rotation system. The rotation speed of the turntable can be adjusted according to the processing requirements, ranging from 0.5 - 2.5m/min. This flexible drive mode enables the equipment to adapt to glass processing of different shapes and sizes. Whether it is large or small glass, it can achieve efficient grinding processing, greatly improving production efficiency.

3. Vacuum adsorption:

The glass is fixed on the workbench of the Shaped-glass grinding machine by a vacuum suction cup. This adsorption method can ensure the stability of the glass during processing. The suction force of the vacuum suction cup is evenly distributed, which will not damage the glass. At the same time, it can also ensure the accurate position of the glass during the grinding process, avoid processing errors caused by glass movement, and improve the reliability and consistency of processing.

4. Multi-purpose grinding head:

It is equipped with a variety of grinding heads, which can be replaced according to different grinding needs. When grinding round edges, three grinding heads can be installed for rough grinding, fine grinding and polishing respectively; when grinding bevel edges, a bowl-shaped grinding wheel is used, and the bevel angle is adjusted by tilting the grinding head. This multi-purpose grinding head design enables the equipment to be used for multiple purposes, meet the needs of various edge grinding processes, and reduce the purchase cost of the equipment.

5. Stable performance:

It is made of high-quality steel as a whole, with a stable structure, a weight of 1000kg, and a size of 1000×1600×1200mm. This sturdy structural design allows the equipment to remain stable during long-term operation, reduce the impact of vibration on processing accuracy, extend the service life of the equipment, and ensure that the equipment can operate stably in various harsh working environments.

6. High efficiency and energy saving:

The voltage of Shaped-glass grinding machine is 380V/150Hz and the power is 3kw. It can achieve energy-saving operation while ensuring efficient processing. Its efficient motor drive system and optimized grinding process enable the equipment to minimize energy consumption and reduce production costs during the processing process, which is in line with the energy-saving concept of modern industry.

7. Easy operation:

The operating interface of This Shaped-glass grinding machine is simple and easy to use. Operators can master the operation method of the equipment after simple training. The semi-automatic design of the equipment allows automatic grinding processing to be achieved with simple settings and adjustments during operation, which greatly reduces the difficulty of operation and improves production efficiency.

8.Safe and reliable:

This Shaped-glass grinding machine fully considers the safety of operators during the design process, and sets safety protection devices at key locations, such as emergency stop buttons, protective covers, etc. These safety devices can effectively prevent operators from being accidentally injured during the processing process, ensure the safe and reliable operation of the equipment, and provide operators with a safe working environment.
