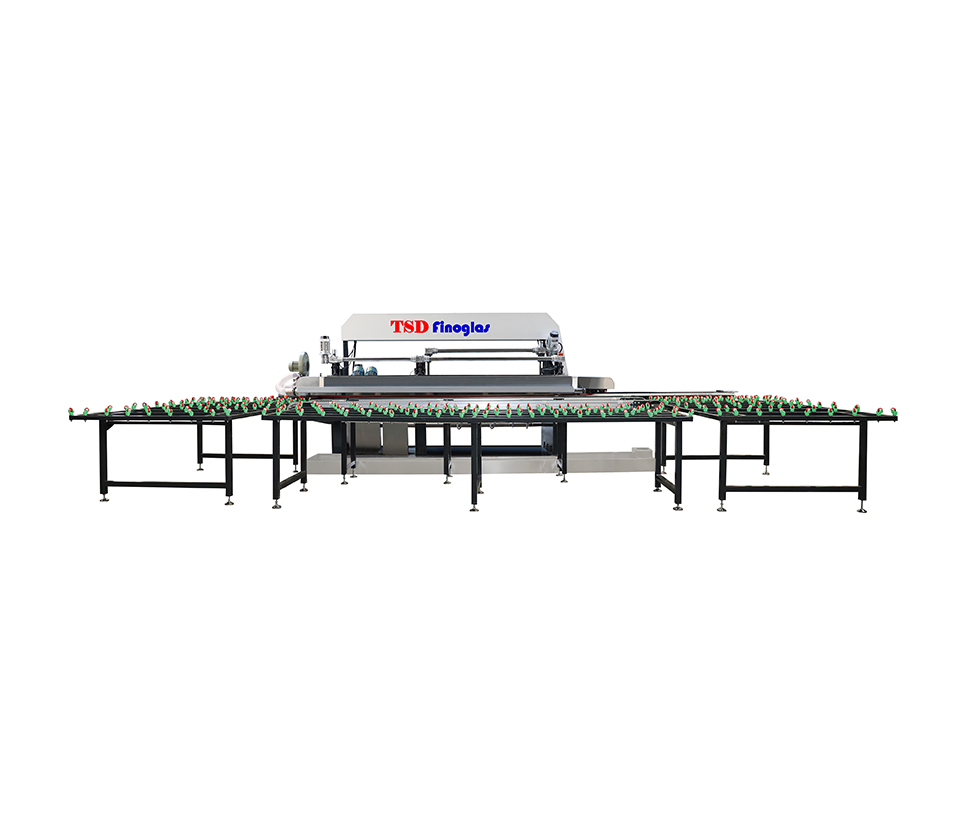

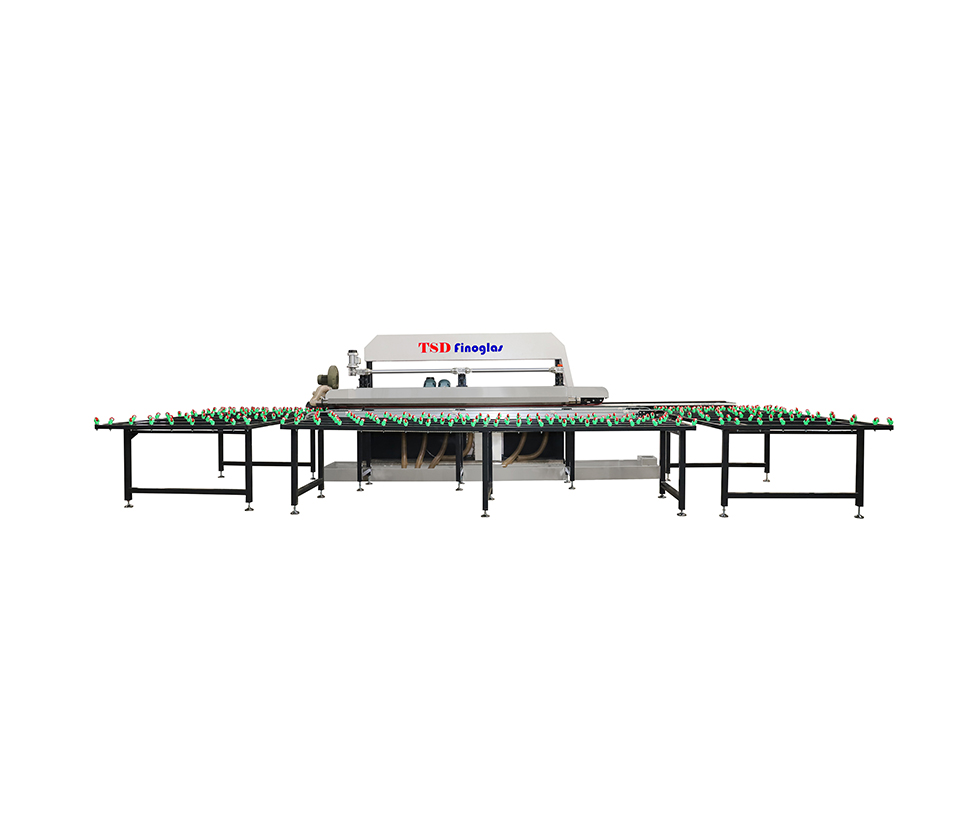

Horizontal Straight Edger

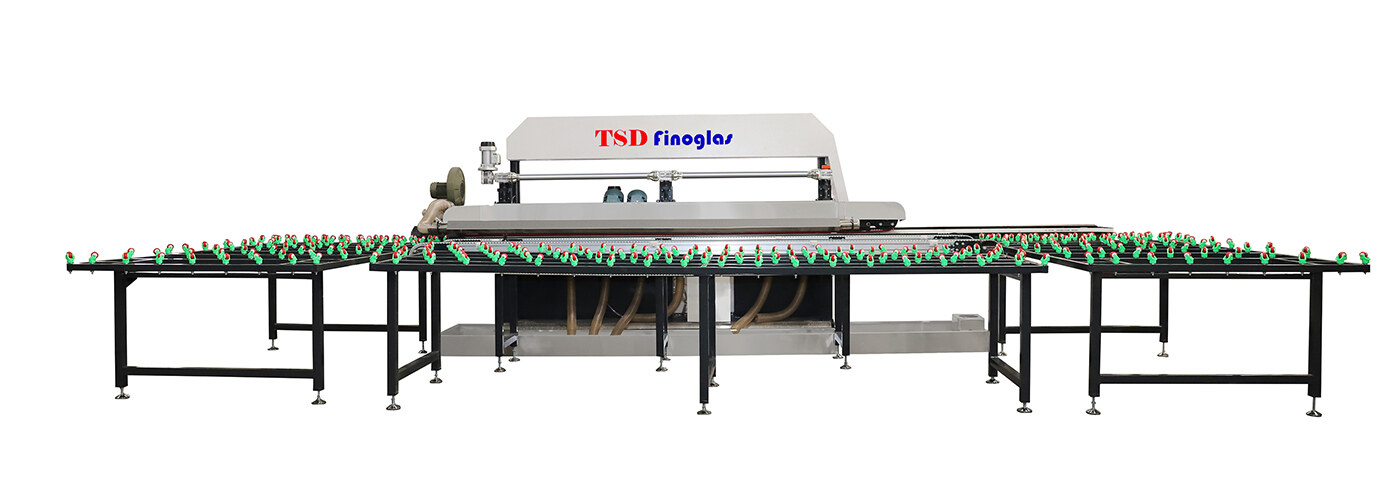

1. Introduction (TZM-H type)

Specialized in the processing of rhombus glass and special-glass and max big glass to ensure the safety of processing. Also suitable for grinding flat glass with different sizes and thicknesses.

Rough grinding, chamfering, and polishing processes are completed at one time.

Variable frequency speed regulation, stable change.

High processing precision and work efficiency, convenient operation.

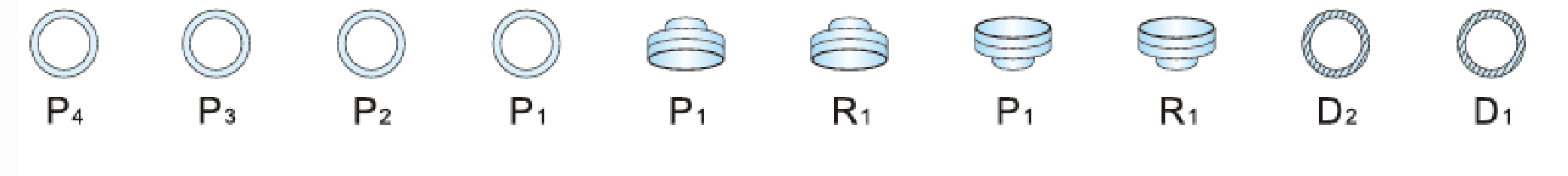

Wheels Placement (TZM-H type)

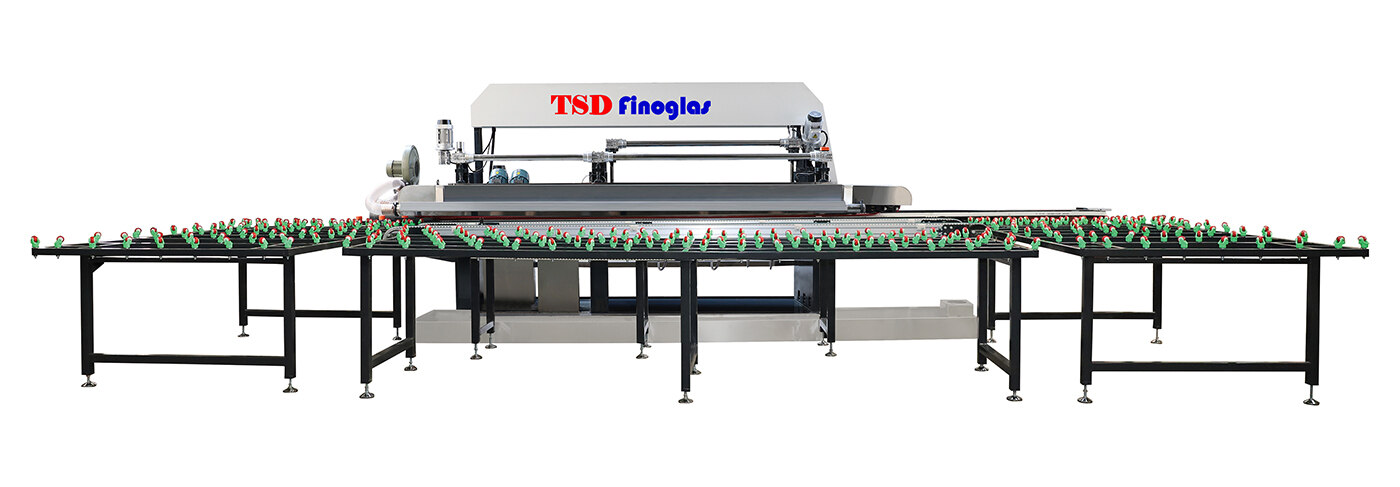

2. Introduction (TZM-45° type)

Specialized in the 0°-45° processing of rhombus glass and special-glass and max big glass to ensure the safety of processing. PLC control and adjust glass thickness and angles. Also suitable for grinding flat glass with different sizes and thicknesses.

Rough grinding, chamfering, and polishing processes are completed at one time.

Variable frequency speed regulation, stable change.

High processing precision and work efficiency, convenient operation.

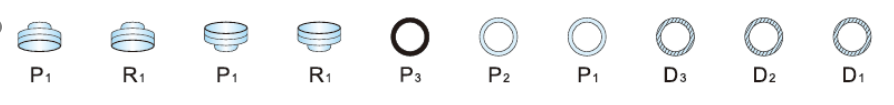

Wheels Placement (TZM-45° type)

Features: (TZM-H type)

1. Single side edging machine Specialized in the processing of rhombus glass and special-shaped glass to ensure the safety of processing.

2. Also suitable for grinding flat glass of different sizes and thicknesses.

3. Coarse grinding, fine grinding, chamfering, and polishing processes are completed at one time.

4. Frequency conversion speed regulation is adopted, the adjustable range is large, the speed change is stable, and the feeding speed and feeding amount can be adjusted arbitrarily during the grinding process.

5. High processing precision, high work efficiency, convenient operation, it is an essential tool for glass processing technology.

Features: (TZM-45° type)

(taking The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine as reference example only)

1. High-efficiency grinding capability

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine is driven by 10 motors and can simultaneously complete a variety of processes such as rough grinding, fine grinding, chamfering and polishing. Its maximum processing width can reach 3000mm×1800mm, which is suitable for processing large-size glass. The grinding speed is controlled by frequency conversion speed regulation and can be adjusted according to the thickness of the glass, ranging from 0.5-5m/min to ensure processing efficiency and quality. This efficient design enables the equipment to significantly improve production efficiency when processing large areas of glass and meet the needs of large-scale production.

2. High-precision processing

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine adopts a PLC control system, which can accurately adjust the thickness and angle of the glass, and the processing accuracy can reach 0.01mm. Its glass thickness processing range is 3-25mm, which can meet the processing needs of glass of different specifications. The chamfer angle can be adjusted in the range of 0°-45° to ensure the flatness and beauty of the glass edge. The high-precision processing capability enables the equipment to meet the strict requirements of high-end glass products and is suitable for industries such as construction and automobiles that have extremely high quality requirements.

3. Multifunctional integration

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine integrates multiple functions in one, and can complete the rough grinding, fine grinding, chamfering and polishing processes of glass at one time, without the need to change the equipment many times, which greatly improves production efficiency. Its drilling diameter range is Ф5-Ф80mm, which can meet different process requirements. This multifunctional integrated design not only saves production time and labor costs, but also improves the versatility and flexibility of the equipment, and is suitable for a variety of glass processing scenarios.

4. Safe and reliable design

The 10 Motors 45 Degree Horizontal Glass Edge Grinding Machine is designed with full consideration of operational safety, and is equipped with an emergency stop switch and protective devices to ensure the safety of the operator. Its overall weight is 3600kg, and its dimensions are 9000×1700×4000mm. It has a stable structure, smooth operation, and can work stably for a long time. The safe and reliable design makes the equipment more assured during operation, reduces the occurrence of accidents, and ensures the safety of the production environment.

5. Easy to operate

The 10 Motors 45° Horizontal Glass Edge Grinding Machine adopts a humanized design, with a simple and clear operation interface and easy to use. Its control system is operated through a touch screen, and parameter settings are convenient and quick. The feeding speed and grinding speed of the equipment can be adjusted by the frequency converter, and the operation is flexible. This easy-to-operate design enables the equipment to quickly adapt to the usage habits of different operators, reduce training costs, and improve production efficiency.

6. Energy-saving and efficient

The power of the 10 Motors 45° Horizontal Glass Edge Grinding Machine is 28kW. It uses a high-efficiency motor and energy-saving control system, which can reduce energy consumption while ensuring processing efficiency. Its voltage is 380V/50HZ, which meets the industrial electricity standards and has low operating costs. The energy-saving and efficient design enables the equipment to significantly reduce energy consumption in long-term operation, saving operating costs for enterprises.

7. Strong adaptability

10 Motors 45° Horizontal Glass Edge Grinding Machine can adapt to the processing needs of glass of different thicknesses and sizes, with a minimum processing size of 100×100mm and a maximum processing size of 3000×1800mm. Whether it is small glass products or large glass panels, they can be processed efficiently. This strong adaptability enables the equipment to meet a variety of glass processing scenarios, from architectural glass to decorative glass.

8. Easy maintenance

10 Motors 45° Horizontal Glass Edge Grinding Machine has a reasonable structural design, and key components are easy to disassemble and maintain. Its motor and transmission components are made of high-quality materials and have a long service life. Regular maintenance ensures long-term and stable operation of the equipment. The maintenance-friendly design makes equipment maintenance easier, reduces downtime, and improves equipment availability.
