Glass Washing-sponge Roller Type

Glass washing machine is used in washing and drying glass with sponge rollers type construction. This machine is chain type conveying, 4 pairs brushes, 4 pairs sponge rollers, 3 sets heating tubes, water tank and covers are stainless steel material.

Description

1) Glass washing machine is used in washing and drying glass with sponge rollers type construction.

2) This machine is chain type conveying, 4 pairs brushes, 4 pairs sponge rollers.

3) 3 sets heating tubes,

4) water tank and covers are stainless steel material.

5) Low noise, energy saving, long service life, easy to operate.

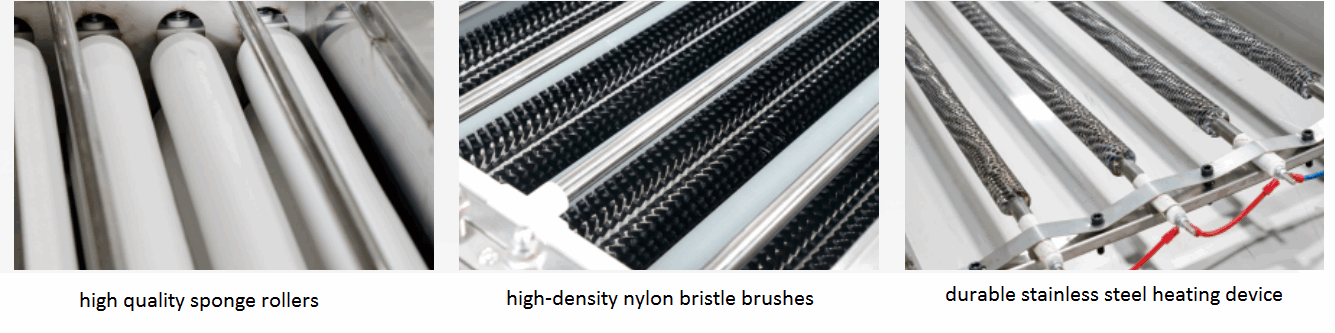

Machine details display

Machine details display

Features

Horizontal structure, used for glass washing and drying.

4 sets of brushes and 4 sets of high quality sponge rollers to absorb water, the effect is better.

Transmission adopts step-less adjustment, stable performance, reliable and durable.

Parameter Data

TQX-500mm

TQX-800mm

TQX-1200mm

TQX-1600mm

Feeding speed (m/min)

0.7-4

0.7-4

0.7-4

0.7-4

Max glass width (mm)

450

800

1200

1600

Min. Glass size (mm)

30*30

60*60

150*150

200*200

Thickness (mm)

2-10

3-12

3-12

3-12

Power (KW)

8

11

14

19

Machine size (mm)

2100x830x1020

2800x1350x1020

3300x1750x1020

3800x2150x1020

Weight (kgs)

500

600

800

1000
