Drilling

INTRODUCTION

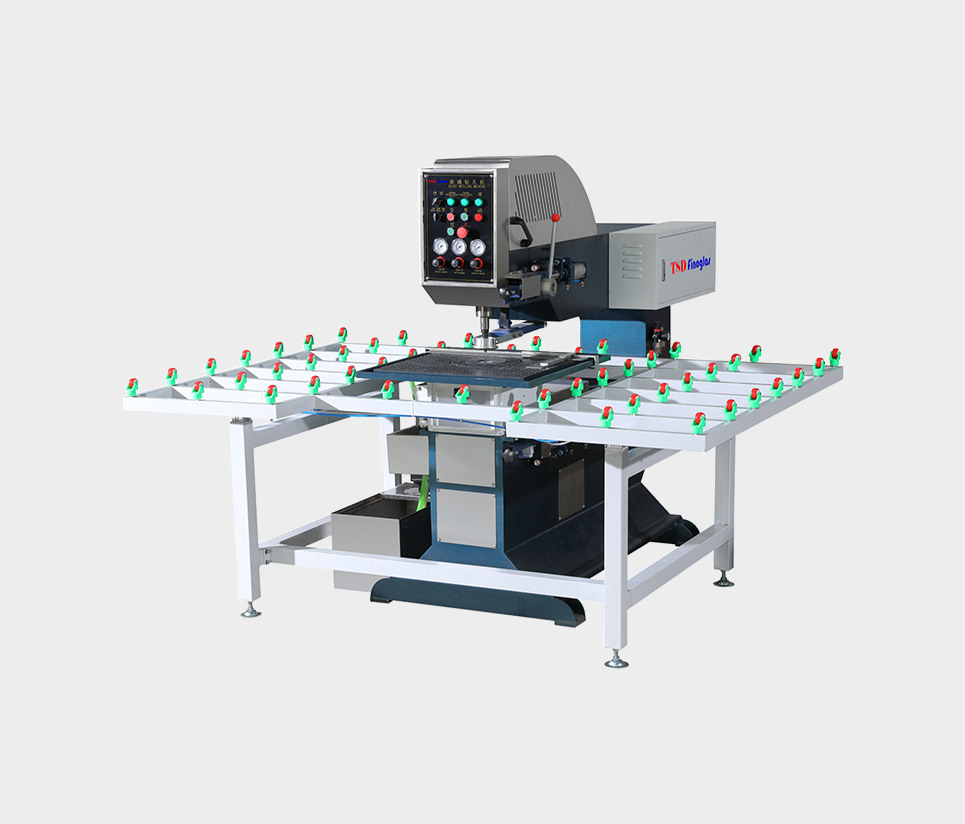

1. Glass drilling machine, adopt pneumatic clamping glass, upper and lower drilling head drill at sequence, feeding automatically, workable table can elevate pneumatically, with wide machining size range, high efficiency and easy operation.

2. Glass double-head drilling machine, adopt pneumatic clamping glass, upper and lower drill bits at sequentially to create holes, while the working table features pneumatic lifting capabilities. The machine can accommodate two different sizes of drill heads, for processing of various hole diameters on a single piece of glass. It offers high efficiency and easy operation.

＊To meet different needs, 3 drilling-heads and 4 drilling-head type are available for options.

Glass drilling machine features:

1) High degree of automation:

Glass drilling machine adopts advanced automatic control system, which can realize automatic feeding of glass. Its automated operation process greatly reduces manual intervention and improves processing efficiency and processing accuracy. During the processing, the equipment can automatically complete a series of operations such as positioning, clamping, and drilling of glass according to the preset program, ensuring that each processing step is accurate and correct, effectively avoiding processing errors caused by human factors, and making the glass processing quality more stable and reliable.

2) Firm and reliable clamping:

Glass drilling machine adopts pneumatic clamping of glass, which has the advantages of uniform, stable and adjustable clamping force. The pneumatic clamping system can flexibly adjust the clamping force according to the thickness and material of the glass, ensuring that the glass is firmly fixed on the workbench during the processing without loosening or displacement. Even during high-speed drilling, the glass can remain stable, thereby ensuring the accuracy and quality of drilling, and at the same time effectively protecting the glass from damage caused by improper clamping.

3) Wide range of processing:

Glass drilling machine has a wide range of processing sizes, with a maximum processing width of 2600x1800mm, which can meet the processing needs of glass of different specifications. Whether it is large-scale architectural glass, large-scale automobile windshields, or other large-scale glass products, they can all be efficiently drilled on this machine. In addition, its drilling diameter range is ⌀4-⌀220mm, which can adapt to the processing requirements of holes of different diameters, whether it is a tiny decorative hole or a larger installation hole, it can easily cope with it, providing great flexibility for glass processing.

4) Efficient drilling performance:

Glass drilling machine is equipped with upper and lower drill bits, which can perform drilling operations in sequence. This unique drilling method greatly improves drilling efficiency. During the processing process, the upper and lower drill bits can drill the glass at the same time, reducing the processing time and the idling time of the equipment. At the same time, its feed speed is 1.5-6m/min, which can be adjusted according to different processing requirements, further improving the processing efficiency. Under the premise of ensuring the processing quality, it can quickly complete the drilling of a large number of glasses, meeting the needs of modern glass processing enterprises for high-efficiency production.

5) Convenient and simple operation:

The operation interface of Glass drilling machine is simple and intuitive, and easy to use. The operator of the equipment can master the operation method after simple training, without complex operation skills and professional knowledge. In the actual operation process, the various settings of the equipment and the start of the processing program can be completed through simple button or touch screen operation. In addition, the equipment is also equipped with a liftable workbench, which is pneumatically controlled, and the operation is convenient and fast. The height of the workbench can be quickly adjusted according to the thickness of the glass and the processing requirements, making the processing process smoother and further improving the convenience of operation.

6) Stable and reliable performance:

Glass drilling machine uses high-quality electrical components and mechanical parts to ensure the stability and reliability of the equipment during long-term operation. Its voltage is 380V/150Hz and its power is 3.5kw, which can meet the normal operation requirements of the equipment, and at the same time ensure that the equipment will not have unstable voltage or insufficient power during operation. The structure of the equipment is reasonably designed, and the mechanical parts have been precisely processed and strictly quality inspected. It has good wear resistance and fatigue resistance, and can operate stably in a high-intensity processing environment, reducing the occurrence of equipment failures, and reducing the maintenance cost and downtime of the equipment.

7) Wide range of applicable glass:

Glass drilling machine can process glass with a thickness range of 3-25mm, covering a variety of glass materials from thin glass to thick glass. Whether it is common ordinary glass or glass of special materials, such as tempered glass, laminated glass, etc., it can be processed on this equipment. This enables the equipment to meet the needs of different industries for glass processing, such as the processing requirements of the construction industry for thick glass, and the processing requirements of the electronics industry for thin glass, and has a wide range of applicability.

8) Compact equipment structure:

Although the Glass drilling machine has strong processing capabilities and a wide range of processing, its overall structural design is compact and occupies a relatively small area. The overall size of the equipment is 2600x2000x1800mm and the weight is 1000kg, which is convenient for the installation and layout of the equipment while ensuring the performance of the equipment. This compact structural design enables the equipment to better adapt to the spatial conditions of different production sites. Even in a processing workshop with limited space, it can be easily installed and used, which improves the practicability of the equipment.

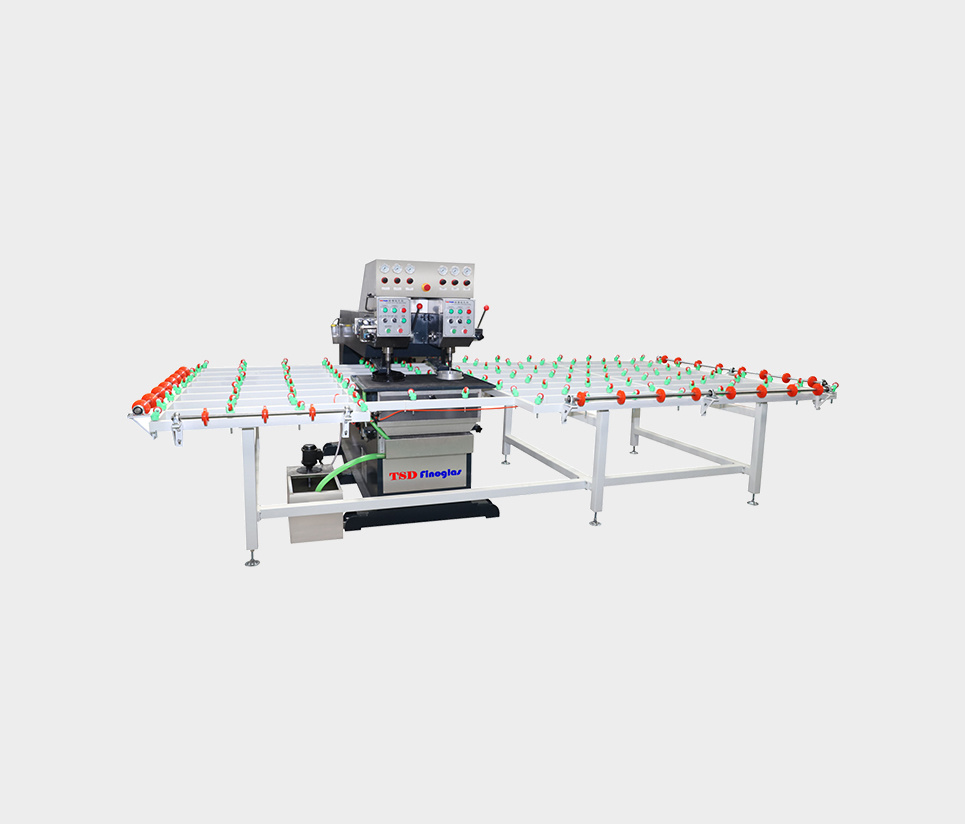

Glass double-head drilling machine

1) Efficient double-head drilling

The double-head drilling system of the Double-Head Glass Drilling Machine is one of its core advantages. The two drills can work simultaneously or sequentially, greatly improving the drilling efficiency. Its drilling diameter range is Ф5-Ф80mm, which can meet a variety of glass processing needs. When processing a piece of 3000x1800mm glass, the double-head drilling system can complete the processing of multiple holes in a short time, which is more than 50% more efficient than the single-head drilling machine, providing efficient support for large-scale glass production.

2) Precise pneumatic clamping

The Double-Head Glass Drilling Machine adopts advanced pneumatic clamping technology to ensure the stability and accuracy of the glass during processing. The pneumatic clamping system firmly fixes the glass sheet through uniform pressure distribution to prevent displacement or shaking during drilling. Its clamping force can be adjusted according to the thickness of the glass (4-25mm) to ensure that glass of different thicknesses can be reliably fixed. This precise clamping method effectively improves the accuracy and quality of drilling and reduces the scrap rate.

3) Pneumatic lifting table

The pneumatic lifting function of the table is another highlight of the Double-Head Glass Drilling Machine. The operator can control the lifting of the table with a simple button, which is convenient for loading and unloading of glass plates. The lifting range and accuracy of the table are carefully designed to meet the needs of operations at different heights. When processing thicker glass, the table can be lowered appropriately to facilitate the operator to place the glass; after the processing is completed, the table can be quickly raised to facilitate the removal of the finished product. This function not only improves the convenience of operation, but also reduces the labor intensity when manually handling glass.

4) Multi-size drill bit compatibility

Double-Head Glass Drilling Machine can install two different sizes of drill bits at the same time, which enables the equipment to flexibly respond to various processing needs. When processing a piece of glass, it may be necessary to drill holes of different diameters at different locations. The equipment can complete the operation without changing the drill bit. This multi-size drill bit compatible design not only saves the time of changing the drill bit, but also improves the versatility and adaptability of the equipment, especially suitable for the diversified product needs of glass processing companies.

5) High-speed feeding system

The feed speed of Double-Head Glass Drilling Machine reaches 2800r/min, which can quickly complete the drilling operation. The high-speed feeding system adopts advanced transmission technology and control algorithms to ensure the stability and accuracy of the drill bit when running at high speed. When processing large areas of glass, the high-speed feeding system can quickly move the drill bit to the specified position, greatly shortening the processing cycle. When processing a piece of 3000x1800mm glass, the processing time can be shortened by more than 30% compared with low-speed feeding equipment, significantly improving production efficiency.

6) Stable electrical system

Double-Head Glass Drilling Machine is equipped with a stable electrical system to ensure the reliability of the equipment during long-term operation. Its voltage is 380V/50HZ and its power is 4.5kW, which can meet the power demand of industrial production environment. The electrical system adopts high-quality components and advanced circuit design, with overload protection, short-circuit protection and other functions, which effectively prevents the equipment from being damaged due to electrical failure. The stable electrical system provides a solid guarantee for the efficient operation of the equipment and reduces the equipment downtime.

7) Precision processing capability

The processing accuracy of Double-Head Glass Drilling Machine is very high and can meet the needs of high-precision glass processing. Its drilling position accuracy and aperture accuracy are strictly calibrated, and the error range is controlled within a very small range. When processing high-precision glass products, the drilling position accuracy can reach ±0.1mm and the aperture accuracy can reach ±0.05mm. This precision processing capability enables the equipment to produce high-quality glass products, which are suitable for high-end glass processing fields such as automotive glass, architectural glass, etc.

8) Humanized operation interface

Double-Head Glass Drilling Machine is equipped with a humanized operation interface, and the operator can easily set the processing parameters through the touch screen or control panel. The operation interface design is simple and intuitive, and even novice operators can quickly get started. The operator can enter parameters such as drilling position, aperture size, processing speed, etc. on the interface, and the equipment will automatically complete the corresponding processing operations. This humanized design not only improves the convenience of operation, but also reduces processing errors caused by operating errors.
