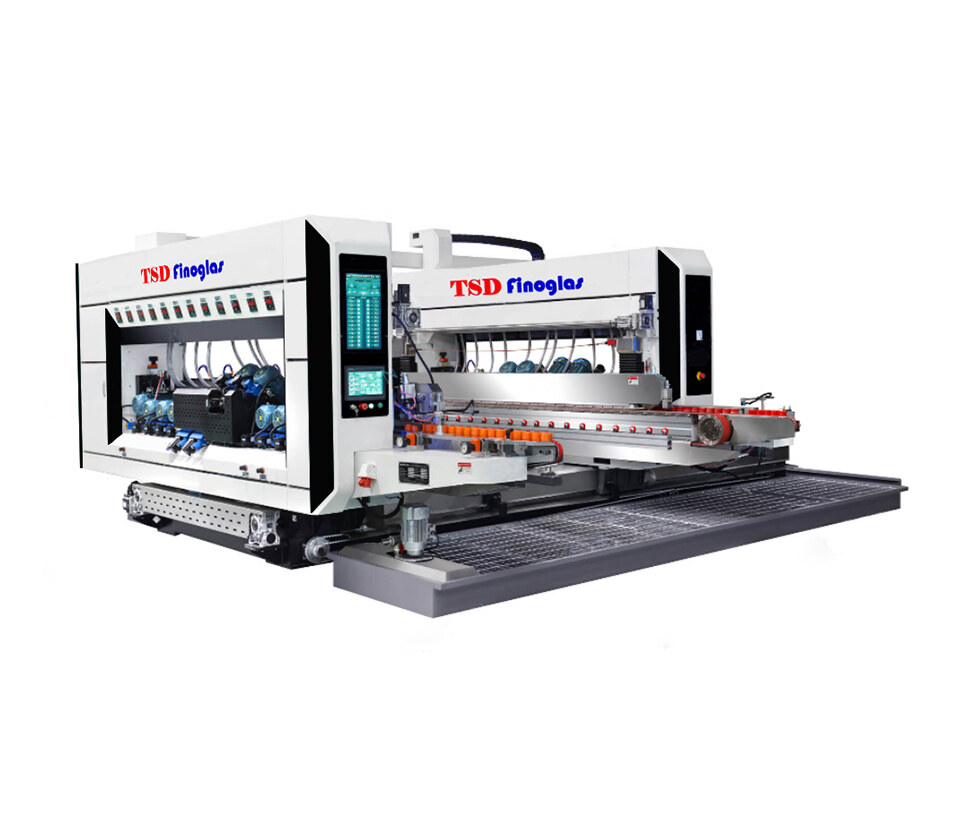

Double Straight Edgers Machine

This glass double straight edger machine is a unit edger machine, to edge the glass with high speed for a big quantity products, for glass popular edging result.

Send E-mail Get Price

Description Features Parameter Data Related Products Inquiry

Description

This machine is suitable for grinding two parallel straight-line edge of glass. Rough grinding, fine grinding and polishing can be finished at one time.

It adopts PLC control system, ABB motors, high density double straight line guide rail and ball screw structure in machine base.

24 or 28 motors for options of different functions; low-e film removing, enhance polishing effect or safety corner cutting.

＊ Feeding of grinding wheels are optional to be manual, pneumatic control or servo control.

Features

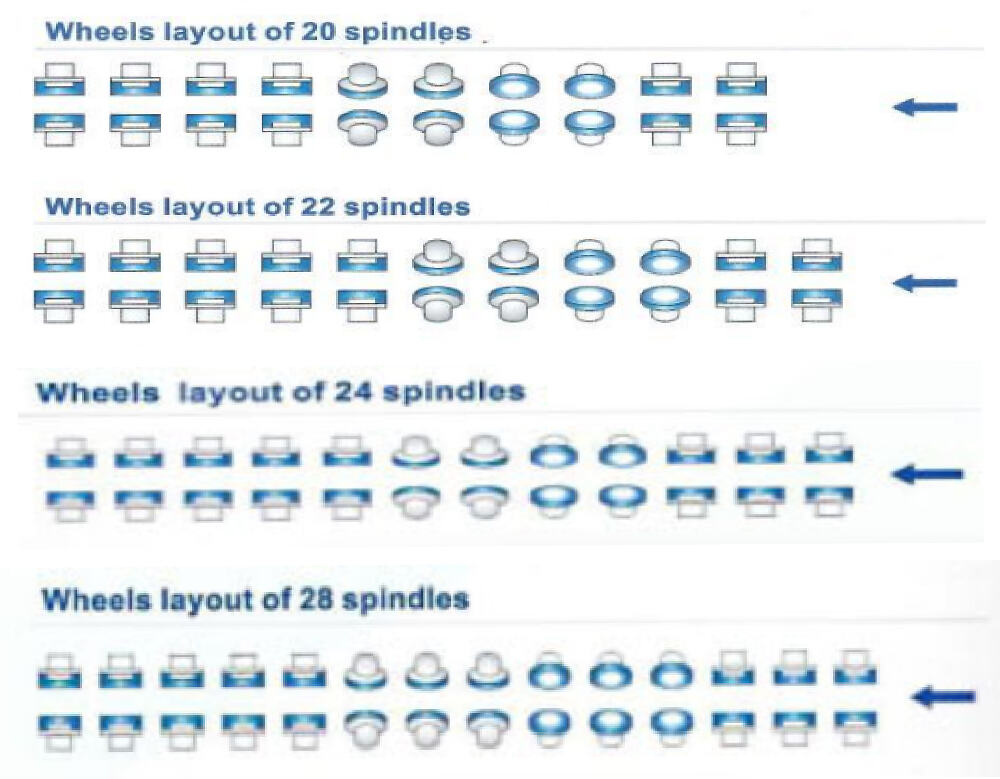

Wheels placement

Double-Straight-Edgers-Machine01

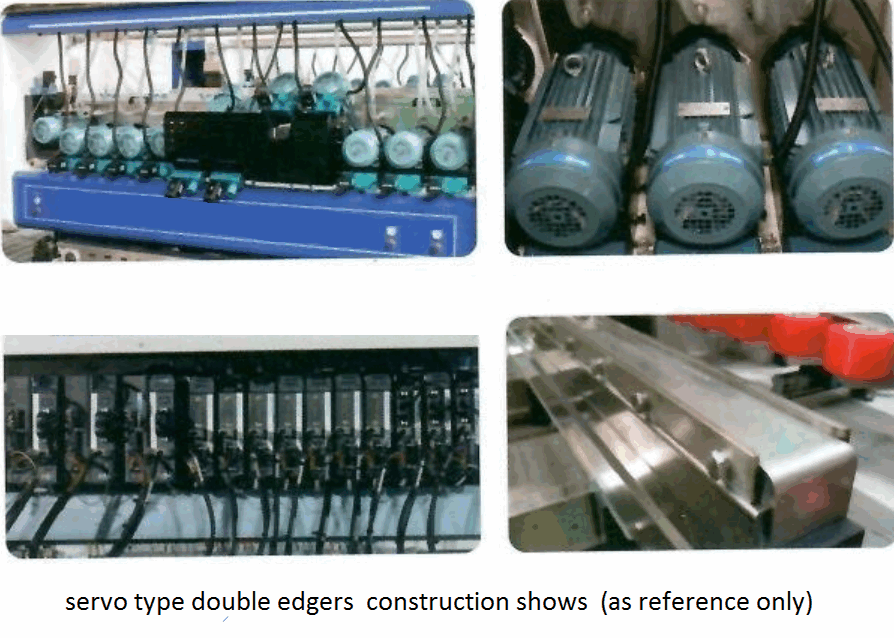

Machine construction display

Double Straight Edgers Machine02

Parameter Data

Specifications as reference only	DSE-SF series	DSE series
Wheel quantity	24 pcs	24 pcs	20-22 pcs
Max.glass size	4200	4200mm	2500mm
Min.glass size	350*350mm	350*350mm	350*350mm
Thickness	3-25mm	3-25mm	3-25mm
Grinding Quantity of bottom	1-3mm	1-3mm	1-3mm
Grinding Quantity of chamfer	1-3mm	1-3mm	1-3mm
Max.transmission speed	20m/min	12m/min	12m/min
Max.speed of width adjustment	15m/min	3-5m/min	3-5m/min
Height of work table	920±30mm	920±30mm	920±30mm
Air pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Total power	70kw	70kw	52kw
