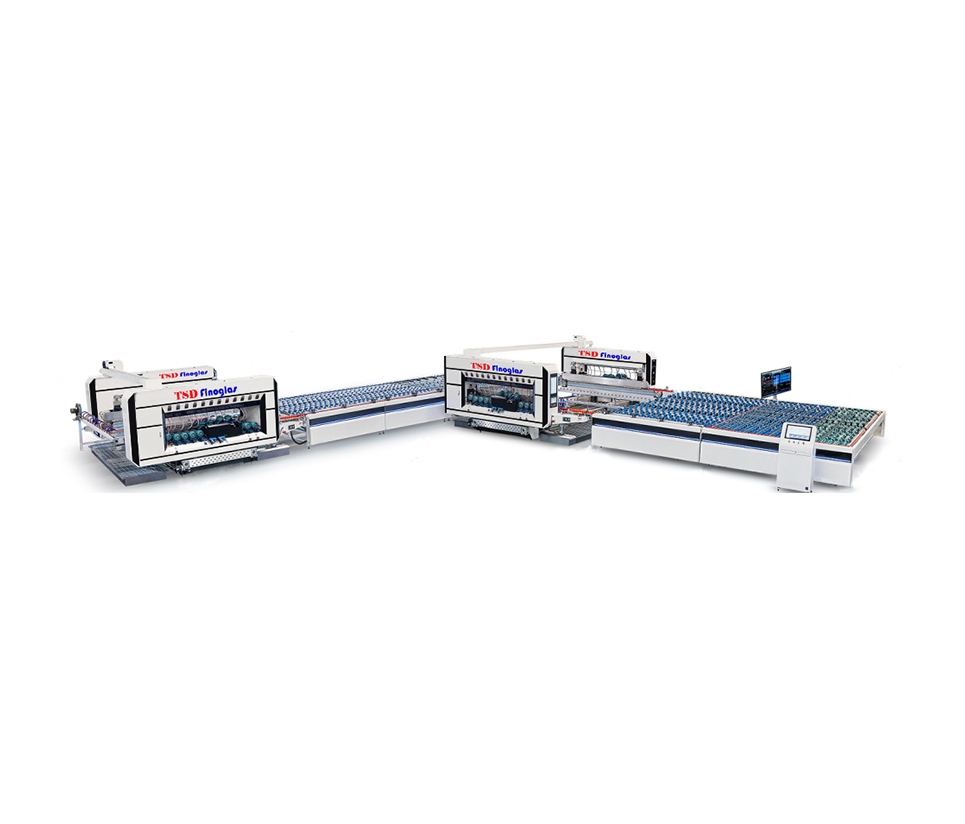

Double Straight Edgers Line

Production Description

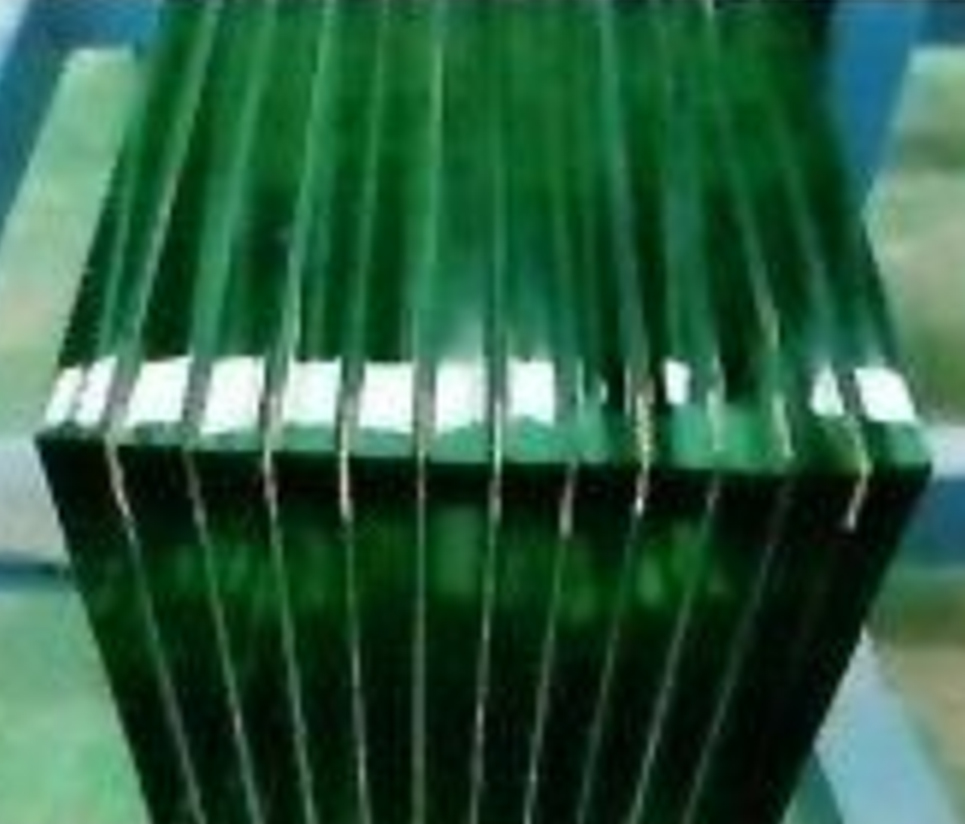

Glass Double Straight Edgers Line includes: glass detecting table (as option only) , glass double edger 1, glass transferring table and glass double edger 2. The double parallel straight lines' bottom and arris of glass can be processed at one time by rough, fine grinding and pneumatic polishing. It is suitable for processing architectural glass, shower glass, furniture glass, home appliance glass and so on.

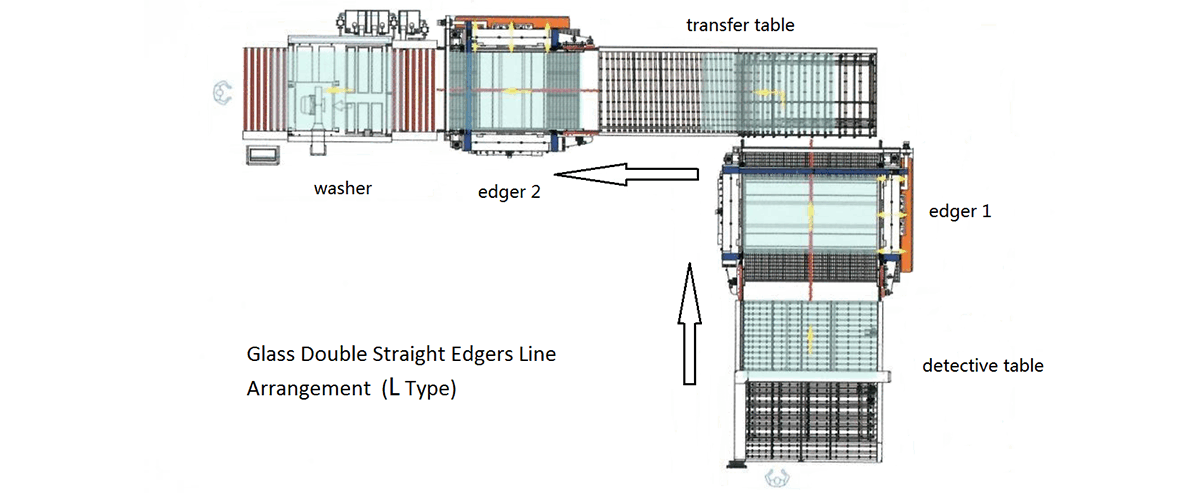

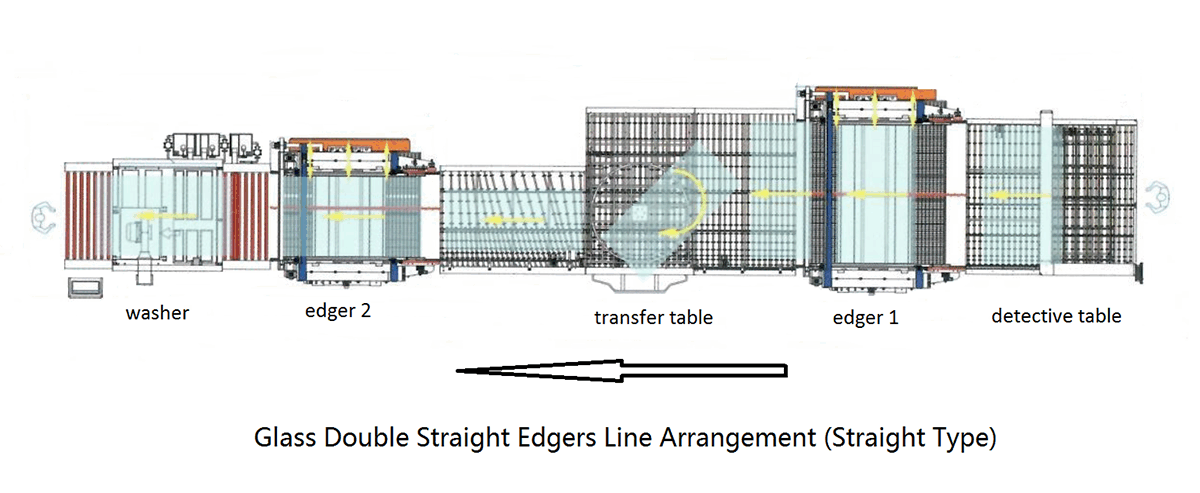

Production line layout diagram

Working glass precision

• Positioning accuracy: +0.25mm

• Straight line cutting accuracy: +0.20mm

• Parallel precision: +0.25mm

• Cutting speed: 0-100m/min

Note: above accuracy is based on the accuracy of cutting process before breaking.

Appliance configuration

(only for reference, will be subject to final details.)

(1) GALIL Move controller

(2) Japan YASKAWA servo motor YASKAWA driver

(3) SMC Precision pneumatic controller

(4) Delta inverter

(5) Panasonic fiber amplifier

(6) OMRON switching power supply

(7) Main low voltage component Schneider
