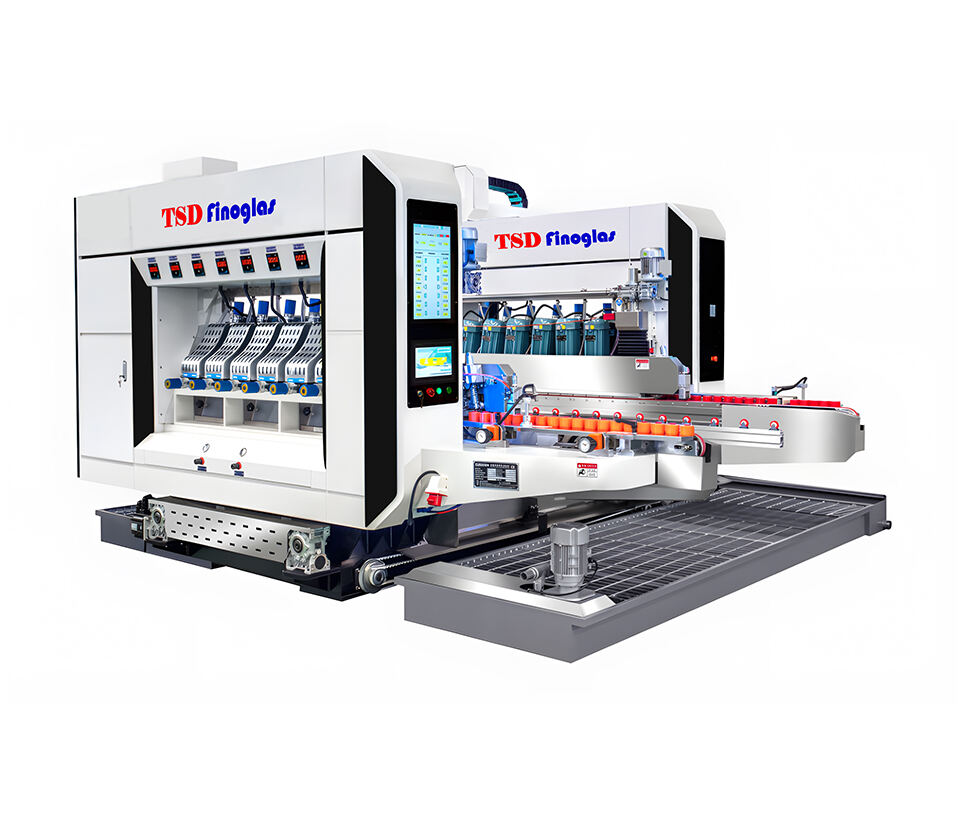

Double Pencil Edgers Machine

This glass double pencil edger machine is a unit edger machine, to edge the glass with high speed for a big quantity products, for glass sides pencil edging result.

Send E-mail Get Price

Description Features Parameter Data Related Products Inquiry

Description

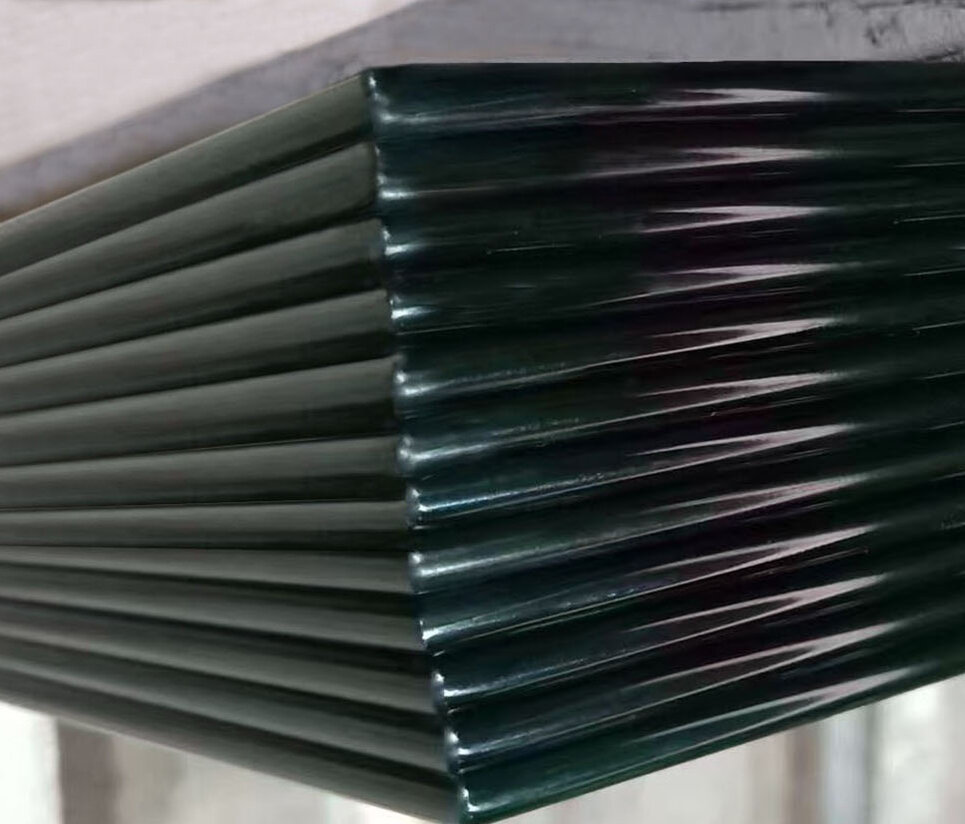

It is suitable for processing pencil edge, OG edge and other molding edge for home appliance glass, furniture glass, art glass and so on.

It adopts PLC control system, ABB motors, high density double straight line guide rail and ball screw structure in machine base.

Features

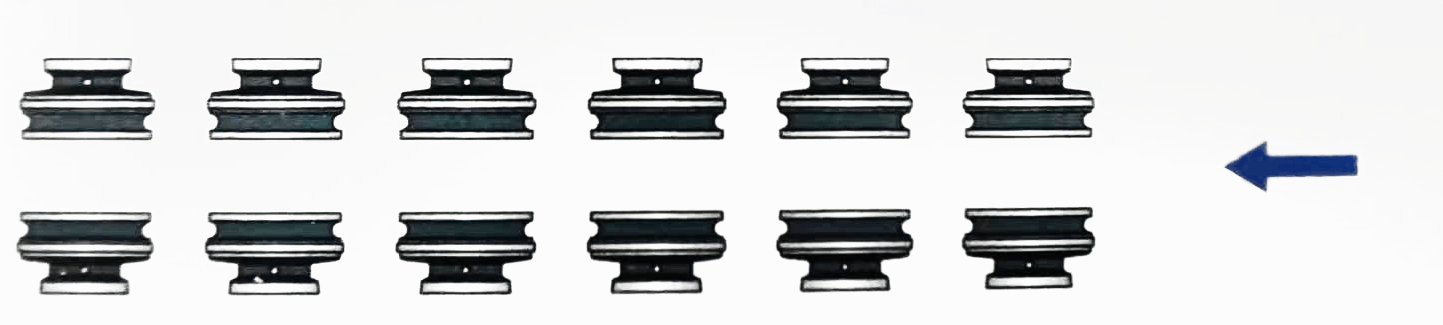

WHEELS PLACEMENT

Double Pencil Edgers Machine01

Parameter Data

Specifications as reference only	DPE series
No.of spindles	12-16
Max.glass size	2500mm
Min.glass size	350*350mm
Thickness	3-12mm
Max. Grinding quantity	1.5mm (single side)
Max.transmission speed	12m/min
Max.speed of width adjustment	3-5m/min
Height of work table	920±30mm
Air pressure	0.6-0.8Mpa
Total power	29kw
