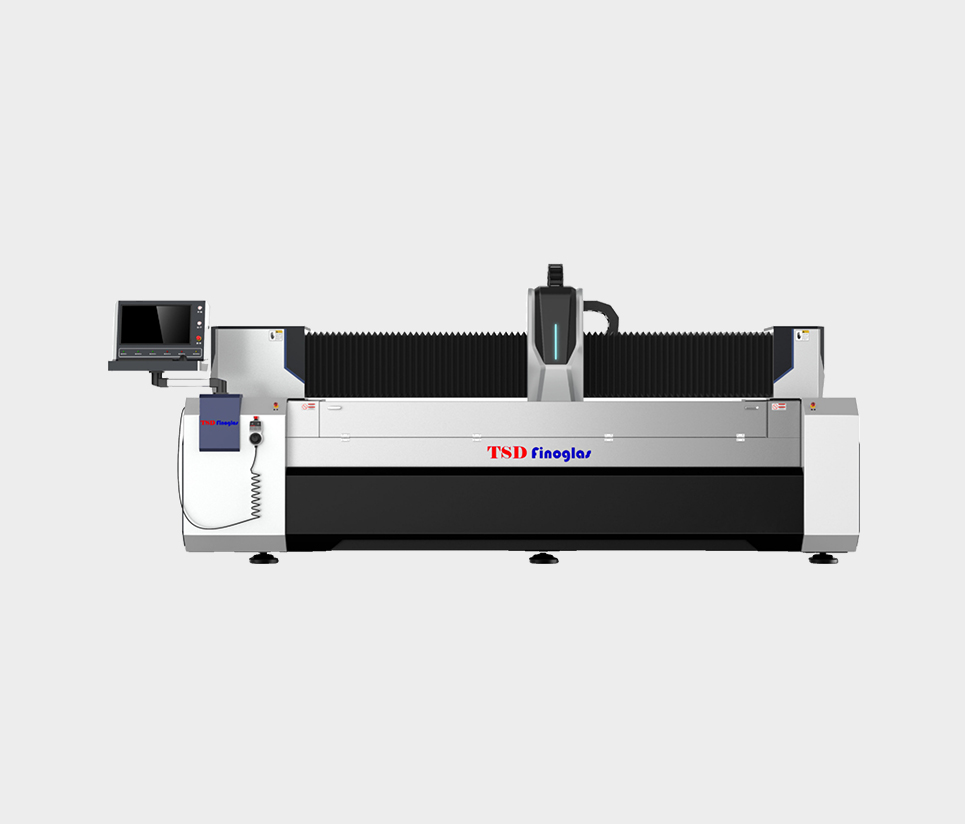

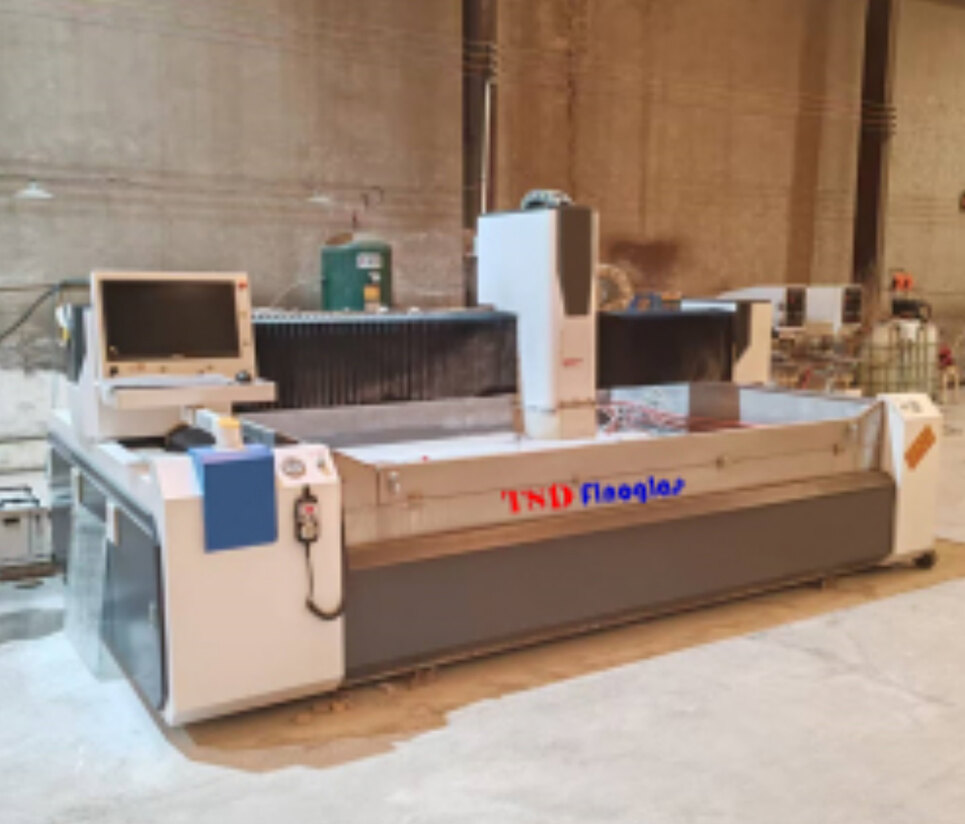

CNC Processing Center

The "CNC shaped glass edging machine" is often also named as the "CNC glass processing center".

It adopts a CNC control system to control the processing specifications and speed through interface parameter settings. The high-precision linear guide rail and ball screw transmission structure and control system ensure the accuracy of processing dimensions, enabling edging and chamfering of glass with thicknesses ranging from (2~19) mm.

It is suitable for various glass rough and fine grinding and polishing processes in home appliances, furniture, automobiles, screens, sanitary ware, and other fields.

＊Machine is equipped with tool storage magazines and automatic tool changers, facilitating multi-process machining such as milling, drilling, boring, and reaming. (options only)

Relevant technical requirements

1) It operates normally under the conditions of an ambient temperature ranging from 7℃ to 45℃ and a relative humidity of no more than 60%

2) Air source requirements: ≥0.5Mpa, requiring a stable air source

3) Water source: workpiece cooling; impurity-free groundwater or tap water

4) Main spindle cooling: pure water or tap water with rust inhibitor

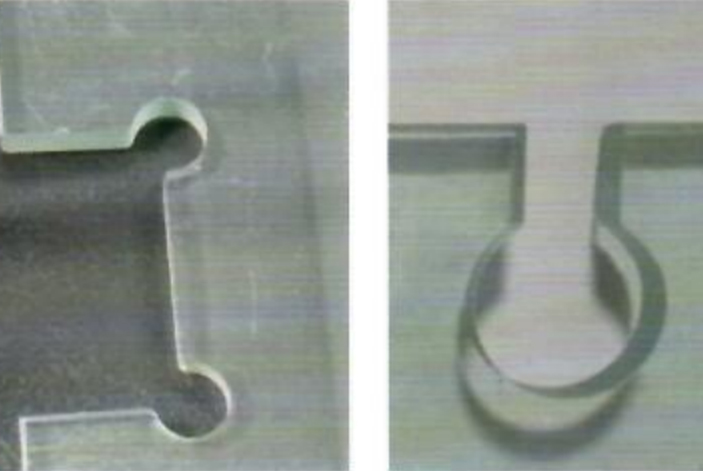

1) Numerical-control-system control, multi-process integration (edge grinding, chamfering, polishing, drilling, etc.), automatic tool change, and complex irregular shape machining with one setup.

2) combination of glass edge grinding, chamfering, polishing, drilling, and milling. Specially designed for grinding from the inside or outside, simple operation.

3) Machine applies to machining automotive glass, home appliance glass, furniture glass, shower room glass and mirrors of all descriptions. It is aimed at automating production and thus improving the competitiveness of enterprises.

＊Machine is equipped with tool storage magazines and automatic tool changers, facilitating multi-process machining such as milling, drilling, boring, and reaming. (options only)
